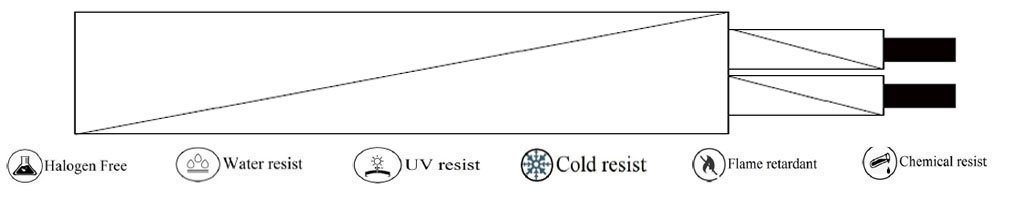

(TC-C015) Polymide-Polymide
Technical Details
|
Design Standard |
As per JSS 51038,JSS 51037, ANSI MC 96.1, IS 8784 & IEC 60584.3 |
|
Conductor |
K/J/T/E/N/KCB/KCA/KX/EX/TX/NX/TX/JX/SC/RC or as per Picture No 1 |
|
Conductor Type |
Solid wire / Flexible |
|
No of Pair |
Single / Multi pair |
|
Conductor Size |
AWG 34 AWG to 14 AWG or Variant as per customer specifications, Refer Size Chart Picture No.2 |
|
Insulation |
Wrapped & Sintered PTFE |
|
Core Identification |
As per Picture No 1 |
|
Outer Sheath |
Wrapped & Sintered Polyimide tape |
|
Outer Colour |
As per Picture No. 1 |
|
Accuracy |
As per Picture No. 1 |
|
Resistance |
As per ANSI MC 96.1 |
|
Voltage Grade |
300V / 600 V / 1100 V |
|
Temperature Range |
-65 Deg C to 300 Deg C |
Applications:
- Used for measuring the temperature
- For carry the mV signal from sensor to panel
- In Laboratory for calibration of high temperature furnaces
- Industry plant, power station, refineries, petrochemical plants etc.
- In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
Features:
- Thin insulation, lower diameter
- Light weight
- Temperature range up to 300 Deg C
- Halogen Free & Low smoke
- Enhance thermal, electrical & fire properties
- Good Flexibility
- Excellent Dielectric Strength
- Excellent Insulation resistance
- Good abrasion resistance
- Chemical & Oil Resistance
