(TC-C013) POLYIMIDE-FIBER GLASS-POLYMIDE-COPPER SCREENING-FIBER GLASS
August 10, 2018
(TC-C005) PTFE –POLYIMIDE
August 10, 2018

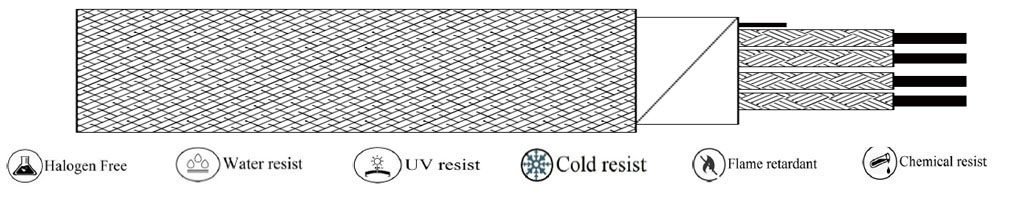

(TC-C014) POLYFILM-FIBER GLASS-ALMYLAR SCREENING-FIBER GLASS
Technical Details
|
Design Standard |
ANSI MC 96.1, IEC 60584.3, IS 8784 |
|
Conductor |
K/J/T/E/N/KCB/KCA/KX/EX/TX/NX/TX/JX/SC/RC or as per Picture No 1 |
|
Conductor Type |
Solid wire / Flexible |
|
No of Pair |
Single / Multi pair |
|
Conductor Size |
AWG 32 to 14 AWG or Variant as per customer specifications, Refer Size Chart Picture No.2 |
|
Insulation |
Polyfilm tape & fiber Glass Insulation with varnish |
|
Core Identification |
As per Picture No 1 |
|
Screening |
Almylar tape screening with 100 % coverage area |
|
Outer Sheath |
Fiber Glass Insulation with varnish |
|
Outer Colour |
As per Picture No. 1 |
|
Accuracy |
As per Picture No. 1 |
|
Resistance |
As per ANSI MC 96.1 |
|
Voltage Grade |
300V / 600 V / 1100 V |
|
Temperature Range |
Up to 550 Deg C |
Applications:
- Used for measuring the temperature
- For carry the mV signal from sensor to panel
- In Laboratory for calibration of high temperature furnaces
- Industry plant, power station, refineries, petrochemical plants etc.
- In Defence, Aerospace, Pharma, Fertilizer, Glass, Steel & Sponge, Cement, Nuclear & many more sectors.
Features:
- flame retardant and self-extinguishing acc. to IEC 60332-1
- Excellent Heat resistance
- Excellent protection to external electromagnetic & noise interference
- Temperature range up to 550 Deg C
- Good Flexibility
- Moderate Dielectric Strength
- Low Insulation resistance
- Good Heat resistance
Note
- Fiber Glass wires are not water resistance, oil resistance & moisture resistance
- Used for fixed installation only
- Multiple use of fibre glass wire reduces its life & lower the strength
