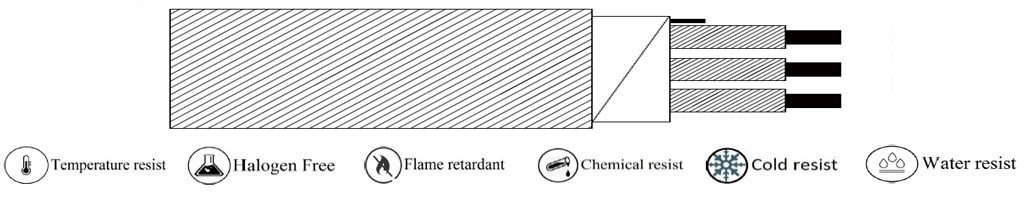

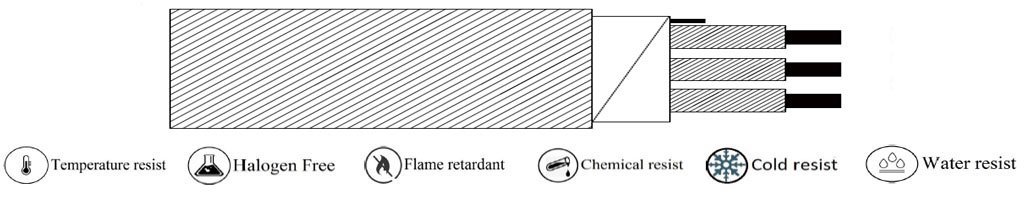

(RTD-C014) PVC-Almylar Screen-PVC

Design Standard	BS 5308, DIN 43760, IS 8130
Conductor	Annealed Bare Copper/Tinned Plated Copper
Conductor Type	Solid wire / Flexible
No of Core	2, 3,4,6,8 or as per customer requirements
Conductor Size(Sqmm)	AWG 24 to AWG 14 or as per customer requirement
Insulation	PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC
Core Identification	As per DIN
Screening	Almyler tape screening with 100 % Coverage area
Core Identification	As per Picture No 1
Outer Sheath	PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC
Outer Colour	As per DIN
Voltage Grade	300V / 600 V / 1100 V
Temperature Range	-40 Deg C to 105 Deg C

Categories: Cables, RTD Cables

Applications:

For Signal & Data Transmission used in measurement & control technology in high temperature zone
Analogue & Digital signal transmission
Industry plant, power station, refineries, petrochemical plants etc.
Industry plant, power station, refineries, petrochemical plants etc.
In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
