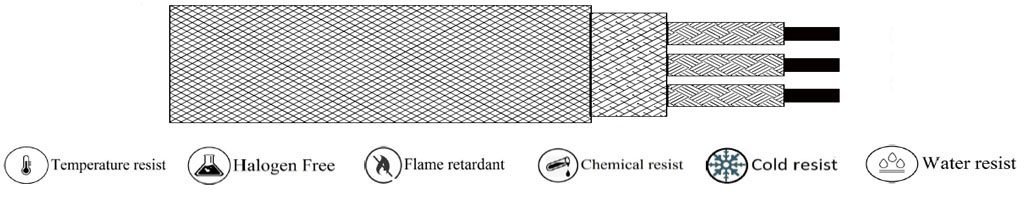

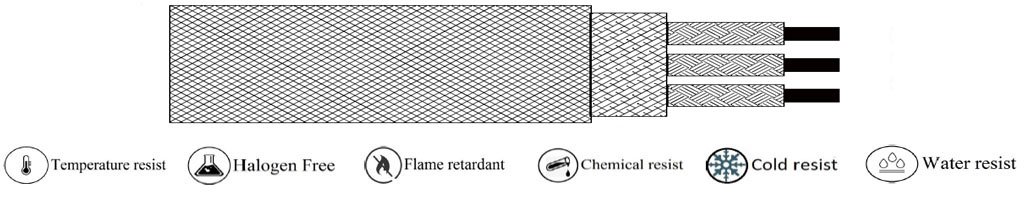

(RTD-C011) FIBER GLASS-FIBER GLASS-SS BRAIDING
Technical Details
| Design Standard |
DIN 43760, IS 8130 |
| Conductor |
Annealed Bare Copper/Tinned Plated Copper/Nickel Plated Copper/Silver Plated Copper |
| Conductor Type |
Solid wire / Flexible |
| No of Core |
2, 3,4,6,8 or as per customer requirements |
| Conductor Size(Sqmm) |
AWG 28 to AWG 14 or as per customer requirement |
| Insulation |
Fiber Glass Insulation with high temperature varnish |
| Core Identification |
As per DIN or Customer Requirement |
| Inner Sheath |
Fiber Glass Insulation |
| Outer Sheath |
Stainless Steel wire braiding for mechancial protection |
| Voltage Grade |
300V / 600 V / 1100 V |
| Temperature Range |
Up to 550 Deg C |
Applications:
- For Signal & Data Transmission used in measurement & control technology in high temperature zone
- Analogue & Digital signal transmission
- Industry plant, power station, refineries, petrochemical plants etc.
- Industry plant, power station, refineries, petrochemical plants etc.
- In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
Features:
- Flame retardant and self-extinguishing acc. to IEC 60332-1
- Excellent Heat resistance
- Good mechanical strength
- Temperature range up to 550 Deg C
- Good Flexibility
- Moderate Dielectric Strength
- Low Insulation resistance
- Good Heat resistance
Note:
- Fiber Glass wires are not water resistance, oil resistance & moisture resistance
- Used for fixed installation only
- Multiple use of fibre glass wire reduces its life & lower the strength
