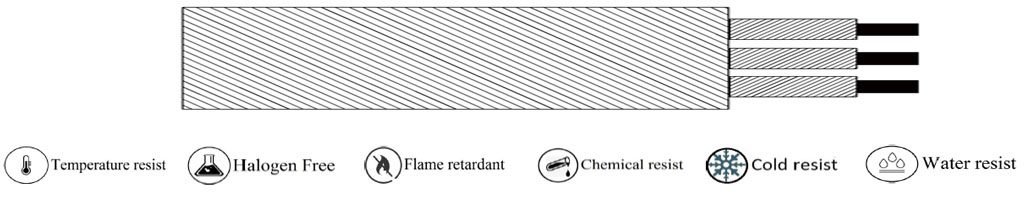

(RTD-C001) PTFE – PTFE

Design Standard : As per DIN 43760, JSS 51034,JSS 51038, IS 8130

Conductor : Annealed Bare Copper/Nickel Plated Copper/Silver Plated Copper

Conductor Type : Solid wire / Flexible

No of Core : 2,3,4,6,8 or as per customer requirements

Conductor Size(Sqmm) : AWG 28 to AWG 14 or as per customer requirement

Insulation : Wrapped & Sintered PTFE

Core Identification : As per DIN or as per Customer Requirement

Outer Sheath : Wrapped & Sintered PTFE

Outer Sheath Color : White (As per DIN) or variant as per customer specification

Voltage Grade : 300V / 500V / 1100V

Cable Temperature Range : -65 Deg C to Up to 260 Deg C

Categories: Cables, RTD Cables

Applications:

For Signal & Data Transmission used in measurement & control technology in high temperature zone
Analogue & Digital signal transmission
Industry plant, power station, refineries, petrochemical plants etc.
Industry plant, power station, refineries, petrochemical plants etc.
In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
