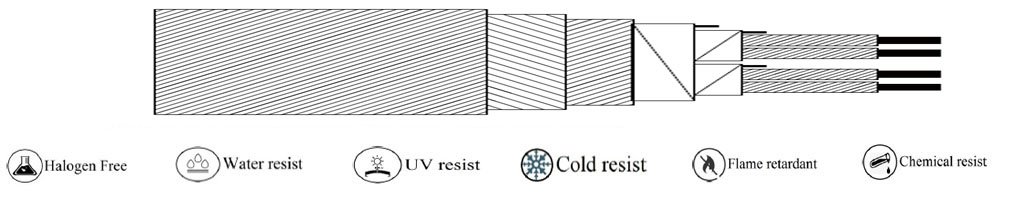

(INST-C008) PE-Individual Pair + Overall Almylar Screen-PVC-G.I. Armouring-PVC

Design Standard	BS 5308-Part 2, BS 6360, BS 7655, IS 5831, IEC 60332-1, IS 1554-1
Conductor	Annealed Bare Copper/Tinned Plated Copper
Conductor Type	Solid (Class 1)/ Stranded (Class 2) / Flexible (Class 5)
No of Pair	2, 3,4,6,8,10,12,16, 24or as per customer requirements
Conductor Size(Sqmm)	0.5/0.75/1.0/1.5 or as per customer specifications
Insulation	PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC
Core Identification	As per BS 5308 or as per customer specifications
Screening	Individual & Overall pair screened with Almylar tape long with drain wire covering 100 % area
Inner/Outer Sheath	PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC (Black Colour)
Armouring	Galvanised steel wire Armouring / Galvanised Flat Strip
Outer Colour	Black/ Blue or as per customer specifications
Voltage Grade	300V / 500 V (1100 V also available on customer specifications)
Temperature Range	-30 Deg C to 105 Deg C

Parameter	Unit	Conductor Size
Size	Sqmm	0.5	0.75	1.0	1.5
Max. Resistance at 20 Deg c	Ohm/Km	36.8	25.0	18.4	12.3
Max.Mutual Capacitance between cores	Pf/m	250	250	250	250
Max. Capacitance between core to screen	Pf/m	400	400	400	400
Max. Inductance	mH/Km	1	1	1	1
Max. L/R Ratio	Micro H-Ω	25	25	25	40
Insulation Resistance at 20 °C	Mohm-Km	> 25
Tested Voltage	KVac	1.0 Kv for 1 Minute
