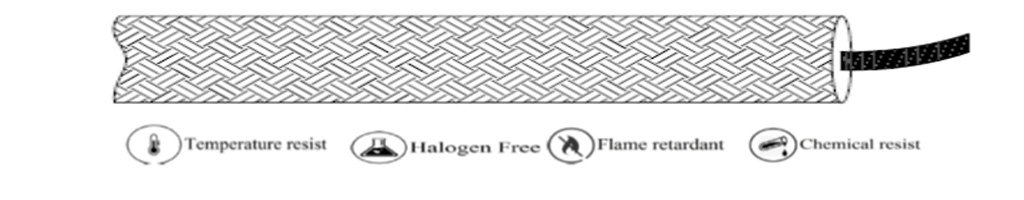

(HEATER-C400) Fiber Glass with Varnish Wires
Technical Details
| Conductor |
Nickel Plated Copper/Tinned Plated Copper/Pure Nickel |
| Conductor Type |
Stranded (Class 2) / Flexible (Class 5) |
| Conductor Size | 0.35 to 6 Sqmm or as per custoemr specifications |
| Insulation |
Fiber Glass with high temperature varnish |
| Colour |
By different colour thread |
| Voltage Grade |
Up to 600 V, 1100 V |
| Temperature Range |
Up to 400 Deg C |
Applications:
- Electrical connection in high temperature equipements
- Internal wiring of commercial & industrial heating equipements
- Internal wiring of commercial & industrial cooking equipements
- High Temperature furnaces
- Muffle Furnace
- Microwave ovens
- Power connection in heating zone areas
Features:
- Temperature range up to 400 Deg C
- Excellent temperature resistance
- Excellence Heat Resistance Properties
- Outstanding resistance against chemicals & solvent
- Flame Retardant and self-extinguishing acc. To IEC 60332
- Superb thermal resistance
- External SS metal covering available for enhance mechanical protection
Note:
- Fiber Glass wires are not water resistance, oil resistance & moisture resistance
- Used for fixed installation only
- Multiple use of fibre glass wire reduces its life & lower the strength
