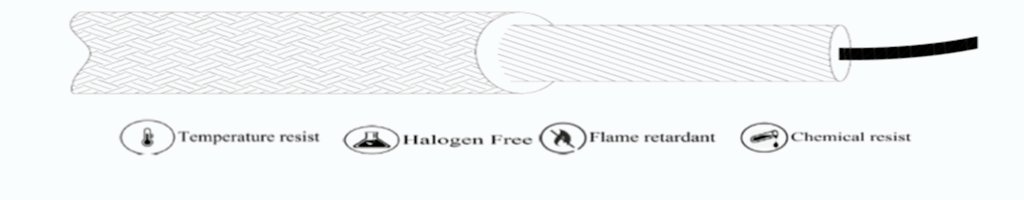

(HEATER-C200) SILICON-FIBER GLASS BRAIDING
Technical Details
| Conductor |
Nickel Plated Copper/Tinned Plated Copper |
| Conductor Type |
Stranded (Class 2) / Flexible (Class 5) |
| Conductor Size |
0.35 to 95 Sqmm |
| Insulation |
Silicon Rubber |
| Sheath |
Braided Fiber Glass yarn with high temperature varnish |
| Colour |
By different colour thread |
| Voltage Grade |
Up to 600 V, 1100 V |
| Temperature Range |
Up to 200 Deg C |
Applications:
- Used as motor lead with transformer & other high temperature equipments
- Heater Connection
- Used in small & large heating appliances
- In Blast Furnaces
- Industrial Ovens
- Boilers
- Smelters
- Glass Factories
Features:
- Excellent flexibility with heat resisting characteristics
- Temperature range up to 200 °C
- Used for High temperature zone area
- Excellent chemical resistance
- Environment-friendly
- Good abrasion resistance
- Good dielectric characteristics
- Enhance thermal & Flame Retardant properties
- Good Radiation resistance
