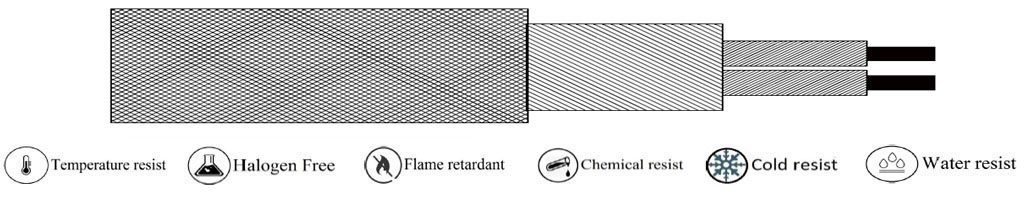

(H-TEMP-C002) PTFE – PTFE –SS Braiding

Design Standard	As per JSS 51038, JSS 51034, MIL 16878 & IS 8130
Conductor	Annealed Bare Copper/Silver Plated Copper / Nickel Plated Copper
Conductor Type	Solid wire / Flexible
Conductor Size	0.50/0.75/1.0/1.5/2.5 or variant as per customer specifications
Insulation	Wrapped & Sintered PTFE
Core Identification	By different colour & colour tracer
Inner Sheath	Wrapped & Sintered PTFE
Outer Sheath	Overall Stainless steel wire Braiding for mechanical strength
Voltage Grade	300V / 600 V / 1100 V
Tested Voltage	1500 V for 300 Voltage Grade 2000 V for 600 Voltage Grade 3000 V for 1000 Voltage Grade
Temperature Range	-65 Deg C to 260 Deg C

Applications:

For Signal & Data Transmission used in measurement & control technology in high temperature zone
Analogue & Digital signal transmission
Industry plant, power station, refineries, petrochemical plants etc.
Industry plant, power station, refineries, petrochemical plants etc.
In Defence, Aerospace, Pharma, Fertilizer, Glass , Steel & Sponge, Cement, Nuclear & many more sectors.
