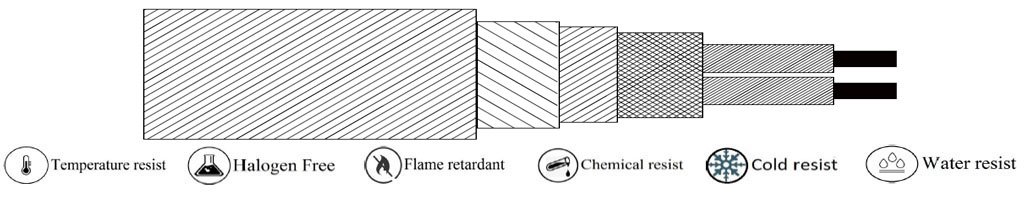

(CONTROL-C005) PVC-Metal Braided Screen-PVC-G.I.Armouring-PVC
Technical Details
| Design Standard |
As per BS 50288-7, IEC 60502-1,IEC 60332-1,IS 1554 |
| Conductor |
Annealed Bare Copper/Tinned Plated Copper |
| Conductor Type |
Solid (Class 1)/ Stranded (Class 2) / Flexible (Class 5) |
| No of Core |
1, 2, 3,4,6,8,10,12,16, 24 or as per customer requirements |
| Conductor Size(Sqmm) |
0.5/0.75/1.0/1.5/2.5 or as per customer specifications |
| Insulation |
PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC / LDPE/HDPE |
| Core Identification |
- 2 Core : Red & Black
- 3 Core : Red, Yellow & Blue
- 4 Core : Red, Yellow, Blue & Black
- 5 Core : Red, Yellow, Blue, Black & Grey
- Above 6 core : Black /Grey colour with numbering
|
| Braiding |
Overall Metal (Cu/SS) Braided Shielding with covering minimum 65% coverage area |
| Inner/Outer Sheath |
PVC / HR PVC / FR PVC/ FRLS PVC / LSLH PVC |
| Armouring |
Galvanised steel wire Armouring / Galvanised Flat Strip |
| Outer Colour |
Black/ Blue or as per customer specifications |
| Voltage Grade |
300V / 500 V (1100 V also available on customer specifications) |
| Temperature Range |
-30 Deg C to 105 Deg C |
Applications:
- In special purpose machine & measurement equipment
- Heating & Cooling system
- Industry plant, power station, refineries, petrochemical plants etc.
- Electronics scale / electronics weighing machines
- Flexible data cable for low frequency transmission application
- Industrial Machineries
- Dry or dump rooms under lower mechanical loads
- Electronics & Computer systems
Features:
- Oil & water resistance
- Protection from external electromagnetic field ensuring excellent data transmission reliability
- Metal Braiding can be of bare copper, Tinned Plated Copper, Nickel Plated Copper & Stainless Steel wire.
- Space saving installation due to lower diameter & flexibility
- Flame retardant as per IEC 60332-1-2
- Excellent electrical performance
- Significant reduction in cross talk and interference between the cores
- Lower density Polyethylene insulation option available for higher insulation resistance
