(CONTROL-C009) SILICON-SILICON
August 6, 2018(CONTROL-C0011) SILICON-BRAIDED SCREEN-SILICON
August 6, 2018

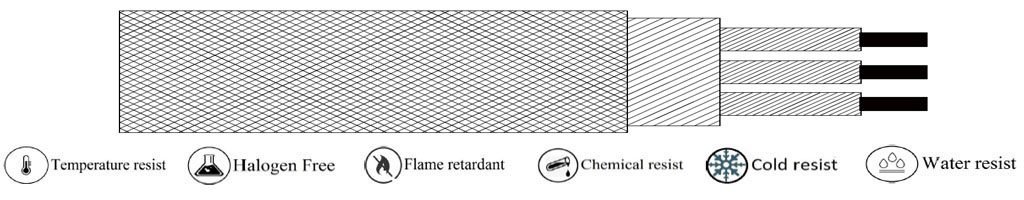

(CONTROL-C0010) SILICON-SILICON-SS BRAIDING
Technical Details
| Design Standard |
As per IS 6380, IEC 60502, IS 9968, IS 8130, IEC60332-1 |
| Conductor |
Annealed Bare Copper/Tinned Plated Copper |
| Conductor Type |
Flexible (Class 5) |
| No of Core |
1, 2, 3,4,6,8,10,12,16, 24 or as per customer requirements |
| Conductor Size(Sqmm) |
0.5/0.75/1.0/1.5/2.5 or as per customer specifications |
| Insulation |
Silicon Rubber |
| Core Identification |
- 2 Core : Red & Black
- 3 Core : Red, Yellow & Blue
- 4 Core : Red, Yellow, Blue & Black
- 5 Core : Red, Yellow, Blue, Black & Grey
- Above 6 core : Black /Grey colour with numbering
|
| Outer Sheath |
Silicon Rubber |
| Outer Braiding |
Stainless Steel Wire Braiding with minimum 80 % coverage area |
| Inner Colour |
Black/ Blue or as per customer specification |
| Temperature Range |
-40 Deg C to 180 Deg C |
Applications:
- Bakery equipments & industrial equipments
- Electrical Motor industries
- Heating & Cooling equipments
- Glass industries
- Lighting Technology
- Electronic equipments
- Power Circuit for electrical installation
- For data communication
- Air Conditioning technology
- Steel, Iron, paper cement & many more industries
Features:
- Oil & water resistance
- Excellent Flexibility
- Superb flexibility
- Flame retardant as per IEC 60332-1-2
- Excellent electrical performance
- Halogen Free
- High Mechanical Strength
- High temperature resistance up to 180 °C
- 4 X OD minimum Bending radius for fixed installation
