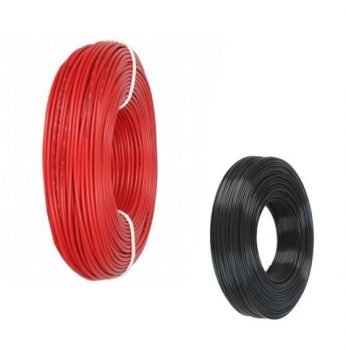

PVC Lead Wires

PVC Lead Wires

We provide PVC insulated hook-up wire with complying IS-694 standard. We are providing PVC wires with Solid/stranded conductors as well as flexible conductor class 5 according to IS 8130.

Category of PVC Wires :

PVC insulated Wires : For General Purpose use rated 70 Deg C

HR PVC insulated Wires: For higher operating temperature of 85oC

FR PVC insulated Wires: Flame retardant wires enhance safety and are suitable for max operating temperature 70 Deg C.

HRFR: Heat Resistant (HR) & Flame Retardant (FR) wires are suitable for higher operating temperature up to 85oC with enhanced safety.

FR-LSH: Flame Retardant Low Smoke Low Halogen (FR-LSH) cables are suitable for wiring in public places like schools, hospitals, theatres, etc.

LSZH (HFFR): Halogen free & flame retardant wires, designed with special halogen free thermoplastic compounds. These wires are suitable for wiring in public places like schools, hospitals, theatres, etc.

Category:

PVC INSULATED WIRES AS PER IS 690 : 2010

Cross Sectional Area( mm2) Nom. Insulation Thickness (mm) Max. D.C. Conductor Resistance at 20°C(Ohms/km) Maximum Overall Dimensions (mm)
0.5 0.6 39 4.3
0.75 0.6 26 4.5
1 0.6 19.5 4.7
1.5 0.6 13.3 5.4
2.5 0.7 7.98 6.2
4 0.8 4.95 6.8
6 0.8 3.3 7.5
10 1 1.91 9.4
16 1 1.21 10.9
25 1.2 0.78 13.6
35 1.2 0.554 15.5
50 1.4 0.386 18.1
70 1.4 0.272 20.8
95 1.6 0.206 23.6
120 1.6 0.161 26
150 1.8 0.129 21
400 2.6 0.0486 33
500 2.8 0.0384 37.5
630 2.8 0.0287 42

Note;

  1. I) The Conductor are conforming to IS:8130:1984
  2. ii) The number & size of wires given are for guidance

only and are decided by its resistance only as per IS:8130:1984

iii) Above Single Core Unsheathed Cables can be manufactured with

HR PVC/FR PVC /FRLS PVC/LSZH PVC Compound Insulation.

PVC Insulated & Sheathed hook up wires as per IS 694 also available on request.
