High Vacuum Polyimide Wire & Cables
High vacuum polyimide wires & cables are designed for high ultrahigh vacuum environment to 1 X 10-10 Torr & temperature resist up to 300 °C. All conductors and shielding material designed with silver plated copper conductor.

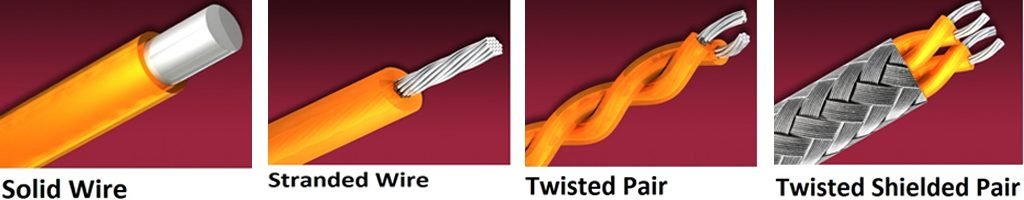

Solid Wire
Conductor: Electrolytic Grade Silver Plated Copper Conductor as per ASTM B298
Conductor Type:- Class 1 , Solid
Conductor Size: AWG 34, 30,28,26,24,22,20,18
Insulation: Polyimide tape
Stranded Wire
Conductor: Electrolytic Grade Silver Plated Copper Conductor as per ASTM B298
Conductor Type:- Stranded Class 2
Conductor Size: AWG 28, 26, 24,22,20,18
Insulation: Polyimide tape
Twisted Pair
Conductor: Electrolytic Grade Silver Plated Copper Conductor as per ASTM B298
Conductor Type:- Stranded Class 2
Conductor Size: AWG 28, 26, 24,22,20,18
Insulation: Polyimide tape
Pair formation: Two cores laid up together to make pair
Twisted shielded Pair
Conductor: Electrolytic Grade Silver Plated Copper Conductor as per ASTM B298
Conductor Type:- Stranded Class 2
Conductor Size: AWG 28, 26, 24,22,20,18
Insulation: Polyimide tape
Pair formation: Two cores laid up together to make pair
Overall Shielding: Silver plated copper braided shielding
