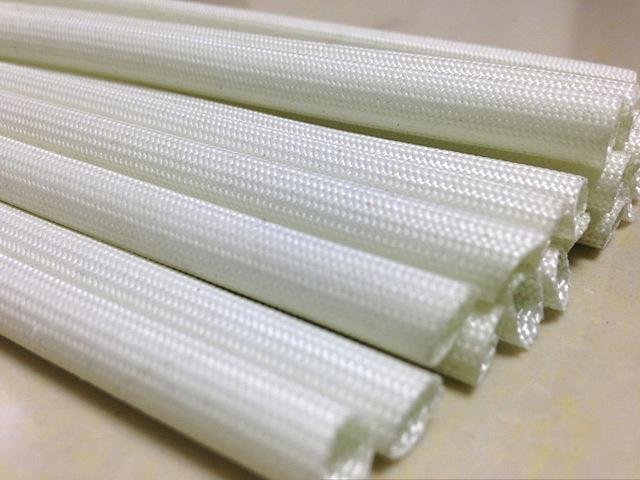

High temperature Sleeves
We offer a variety of high temperature sleeve products in the insulation variety of fiber glass, Silicon, PTFE, Polyimide etc. Each providing unique physical characteristics and sealing performance. General applications for high temperature sleeves include protecting hoses, wires, and cables against weld splatter, fire, extreme heat, and molten metal. Even at elevated temperatures the most of our sleeves are resistant to most acids and alkalis.
Technical Detail:
| Insulation type | Size | Temperature range |
| Fiber Glass Sleeve | From 1.0 mm to 40.0 mm | Up to 400 °C |
| PTFE insulated Sleeve | From 0.50 mm to 6 mm | Up to 260 °C |
| Silicon Sleeve (Colored/transparent) | From dia 2.0 mm to 20.0 mm | Up to 180 °C |
| Polyimide Insulated Sleeve | From dia 0.50 mm to 6.00 mm | Up to 310 °C |
