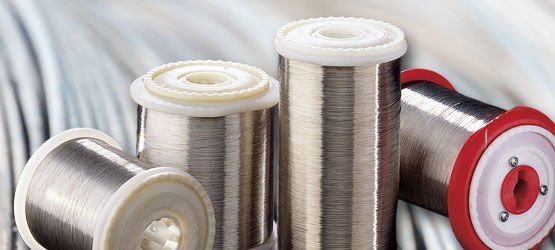

ELECTROPLATED COPPER WIRES

We are manufacturing electroplate copper wire with coating of Silver, Nickel & Tin to provide a conductive, corrosion resistant & solderable surface. Plating thickness is obtained as per various ASTM standards or individual customer requirements.

Category:

We can manufacture plated wire from size 38 AWG (0.102mm) to 12 AWG (1.63 mm).

Product

Norms (Standard)

Plating Specification
Silver Plated Copper ASTM B298 1 Micron to 10 Micron
Nickel Plated Copper ASTM B355 2%, 6%, 10 % & 27% nickel of total weight
Tinned Plated Copper ASTM B33 1.5 Micron to 21 Micron

NICKEL PLATED COPPER (NPC 27 %)

Nickel plating is provided on copper wire to enhancing the corrosion resistance properties, durability & stability at extremes of temperature. We provide special NPC 27% (by weight) to meet significant protection over extreme temperature up to 750°C.

Applications:
Application with high thermal & chemical demands Litz Wire
Aerospace Wires used in Heater
applications Military High frequency applications

SILVER PLATED COPPER

Silver plating over copper conductor provide excellent conductivity, corrosion resistant property and bright & shiny surface. Due to these extraordinary characteristics it is favorable choice to use over high frequency applications.

Applications:
PTFE Lead wire for control panel wiring Textile wire
Aerospace Microcables
Defense Military wires
High frequency applications Medical Sector

TINNED PLATED COPPER

We are manufacturing Tinned plated copper wire from both technique electroplating as well as hot dip.

Due to its excellent solderability properties & corrosion resistant it is widely used in wire harnessing & crimping applications. Tin plated copper wire prevent environmental driven corrosion hence it is very much suitable for signal & instrumentation cables.

Applications:

Control & Instrumentation cables

Lead wire for wire crimping

Automotive wires

Battery Cables

We are providing plated copper conductors in form of solid round wire & stranded multiple wires.

Solar Cables

Solid Round Wire:     from 38 AWG to 14 AWG

Stranded multiple Wires : from AWG 30 to 12 AWG (generally in 7,19,37,61 stranded style)
